NXI-1000 Gigabit LAN Master Control Module
NXI-1000 is a master control module that supports Gigabit LAN communication, it can be used for data exchange between NXI modular instruments and PCs. NXI-1000 is installed in the NXI chassis, providing up to 2000Mbps of high-speed, Ethernet communication bandwidth, and it adopts a standard RJ45 interface, which is convenient for user wiring, operation and system integration.
.Main Features
● Gigabit LAN interface, 10M/100M/1000M self-adaptive
● Support the connection for up to 16 slots of NXI measurement and control module
● Support cascade connection of multiple NXI chassis to expand the number of slots
● High throughput rate with bandwidth up to 2000Mbps
● Support MAC address self-learning, more efficient data transmission
● Standard Ethernet interface for long distance communication, suitable for distributed testing
● Support port auto-flip for better compatibility, and easy to use
● Configured with LED dynamic indicator, real-time display of port status
● Applicable to NXI-F1080, NXI-F1030 chassis
Functions & Advantages

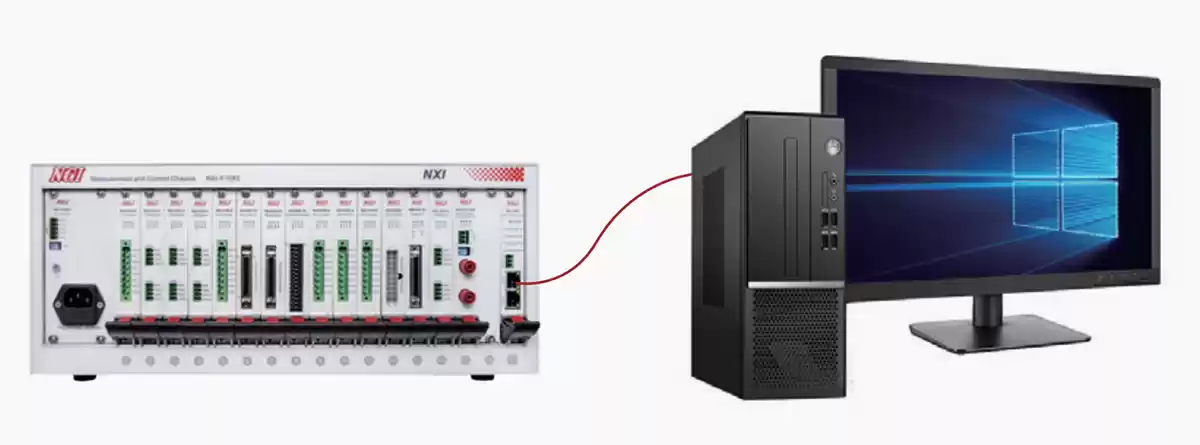

Product connection schematic (I)

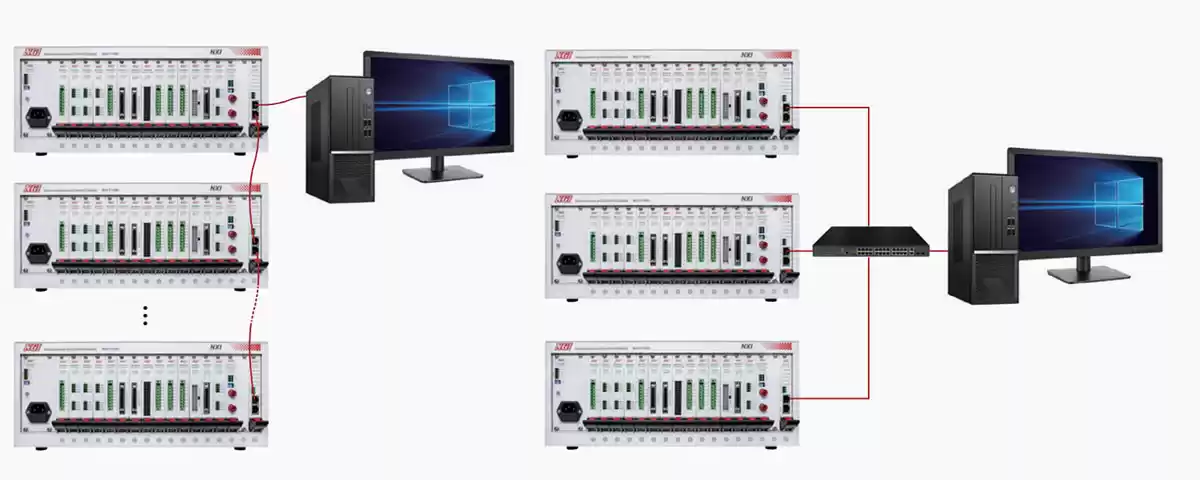

Product connection schematic (II)
