NXI-5102-1000 Programmable Resistance Module
NXI-5102-1000 is a programmable resistance module for insulation resistance simulation in high voltage circuits, withstanding voltage up to 1,000 VDC, and setting range of 200 kΩ ~ 61 MΩ. NXI-5102-1000 is applicable to NXI chassis or independent use, widely used to insulation resistance simulation in a variety of test systems.
Available in the Malaysia
, Inquire now
, Inquire now Share to:
Main Features
● Operating Voltage Range:0~1000VDC
● Insulation Resistance Range: 200kΩ~61mΩ
● Setting Resistance Resolution: 100Ω
● Resistance maximum power 3W
● Resistance Accuracy: 5%+Rr
● Single module with single slot, applicable to NXI-F1000 chassis use
● Support Modbus-RTU, SCPI protocols
● Support 12VDC power supply input, LAN/CAN communication for individual control

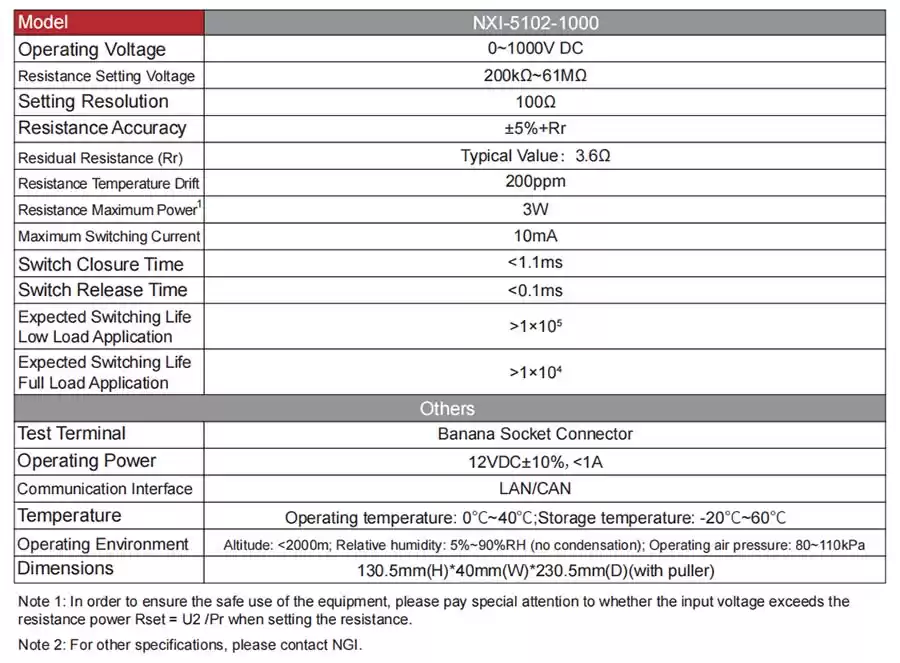

Technical Data Sheet
Application Fields
